Tracking Channel (full receiver)¶

A complete continuous DSSS-BPSK receiver in one object: track.Channel composes a carrier loop (Costas, FLL-assisted) and a code loop (Dll) on a single shared per-sample integrate-and-dump. The transmit signal is a 127-chip PN code spreading BPSK data, with a residual carrier offset (0.18 cycles per code period — larger than a bare PLL can pull in, so the FLL assist is on), a slow code Doppler, and AWGN at SNR = 8 dB.

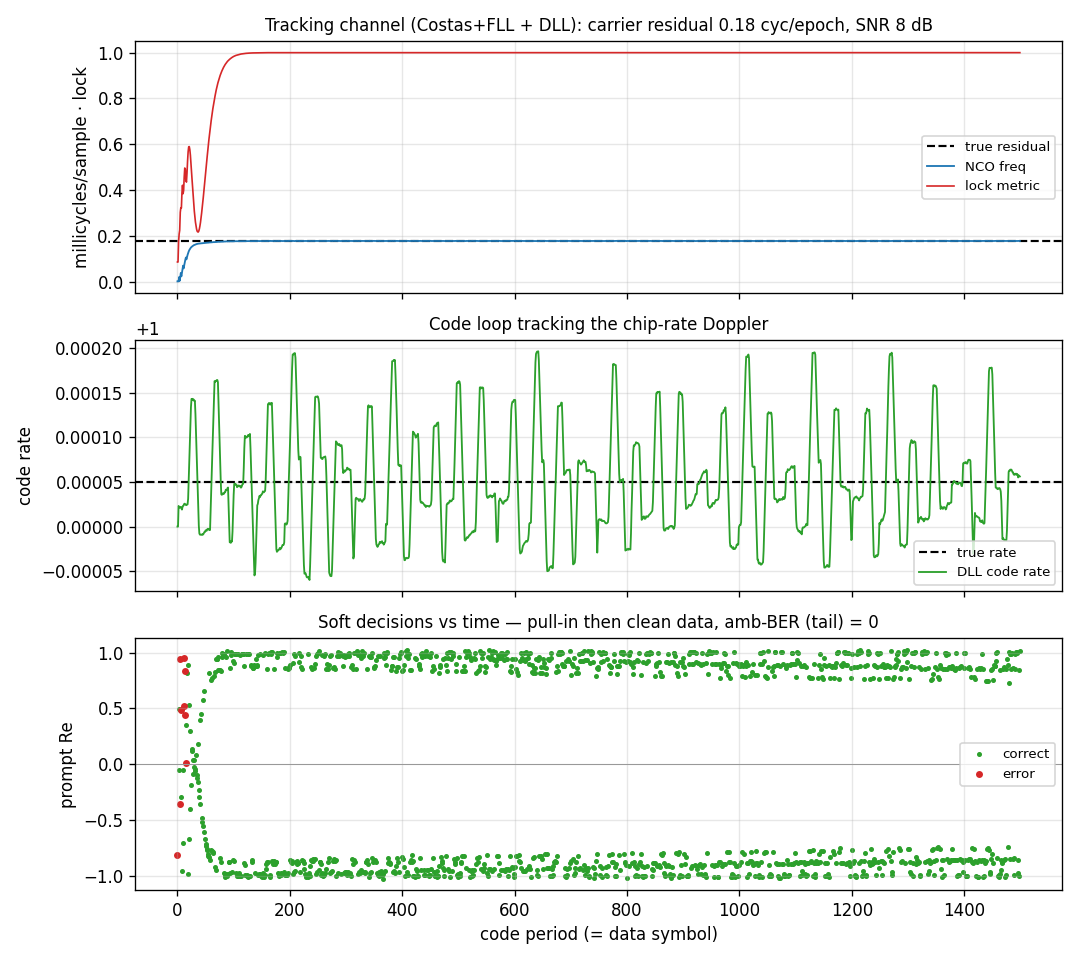

What you're seeing¶

Top — Carrier. The integer-NCO frequency estimate (blue) pulls onto the true residual (black dashed) as the FLL-assisted carrier loop acquires; the lock metric (red) ramps to 1.

Middle — Code. The DLL's chip-rate estimate (green) tracking the true code Doppler (black dashed) — the code replica is held aligned so the prompt stays despread.

Bottom — Soft decisions. The despread prompt symbol's real part per code period. A handful of red errors during pull-in, then clean ±1 clusters once both loops lock — the data is recovered with zero bit errors on the converged tail (a global 180° flip is don't-care).

How it works¶

One per-sample loop does the work of the whole front end:

per sample:   d = costas_wipeoff(carrier)      # integer-NCO carrier wipe-off
              dll_accumulate(d)                 # early / prompt / late correlate
per period:   P = prompt accumulator
              dll_update()                      # code loop on |E|,|L|
              costas_update(P)                  # carrier loop on the prompt
              emit P                            # one despread symbol per period

The carrier wipe-off and the code correlation share the same pass — composing two tracking loops costs no extra sweep over the data. The channel is seeded by acquisition (the FFT search supplies the coarse carrier frequency and code phase); the loops then track the residual.

import numpy as np

from doppler.track import Channel

# a DSSS-BPSK burst: 31-chip PN code, 8 samples/chip, 40 data symbols
code = np.random.randint(0, 2, 31).astype(np.uint8)
chip_signs = np.where(code & 1, -1.0, 1.0)
data = np.random.randint(0, 2, 40) * 2 - 1
spread = (data[:, None] * chip_signs[None, :]).ravel()  # spread each symbol
rx = np.repeat(spread, 8).astype(np.complex64)          # oversample by sps

# code: 0/1 chips for one period; bn_fll>0 enables FLL-assisted carrier pull-in
ch = Channel(code, sps=8, init_norm_freq=0.0, init_chip=0.0,
             bn_carrier=0.05, bn_code=0.005, bn_fll=0.03,
             zeta=0.707, spacing=0.5, nav_period=1)
symbols = ch.steps(rx)        # one despread prompt symbol per code period
bits    = ch.bits(rx)         # hard data bits (bit-synced when nav_period > 1)
freq    = ch.norm_freq        # tracked carrier residual

When a data bit spans several code periods (nav_period > 1, as in GPS C/A where one nav bit = 20 code periods), bits() bit-syncs the prompts: it histograms the prompt sign-flip positions to find the data-bit boundary, then coherently sums nav_period prompts per bit. The detected boundary is readable as bit_phase.

Source: src/doppler/examples/channel_demo.py.
