Gallery¶

Worked examples across every doppler subsystem — nearly all of them a runnable script under src/doppler/examples/, grouped below by DSP domain. Most pages render a figure; run make gallery to regenerate every image, or run a single script directly (each page lists its command under Reproduce / Run it).

The scripts draw with matplotlib and some design filters with scipy, which are not dependencies of the library. Install both once with pip install "doppler-dsp[examples]"; a script that needs one and does not find it says so and names that command.

A page whose subject is a C API instead carries a compiled-and-run c fence and points at its demo under native/examples/.

Looking for a runnable script that isn't a rendered walkthrough — LO, NCO, FFT, ring buffers, the C API reference programs, or the NATS streaming demo? Those live on the Examples page instead.

Signal sources¶

Oscillators and noise: the NCO, the LO and AWGN.

• AWGN Generator — complex Box-Muller noise, amplitude histogram, and flat PSD.

Waveform generation (wfm)¶

Compose, generate and stream any waveform: the Synth, scenes and Plans, codes, frames, and the wfmgen tool.

• A Crowded Band — Many Signals, One Parallel prepare — twenty RRC carriers in one segment, prepared in parallel across cores; Plan.render(enable=...) thins them for free.
• A Frame You Built, Generated — wfm_source_t.frame: a source carries the description a caller built, so a layout no flag spells reaches the samples; --acq-code, --sync and --crc build one through dp_wfm_frame_fixed()
• A Framed Link, Checked by Its Description — framed BPSK/QPSK from one FrameDesc, received by MpskReceiver, judged by FrameDesc.check.
• Composing a Scene — .sum(), .add(), and Headroom — sum, add, headroom; a SoI under a CW interferer over one noise floor.
• One Cache Slot for a Whole Background Field — background=True folds a static emitter population into a single pre-summed cache entry: 67x smaller, and the whole field becomes one overridable control.
• type="symbols" — Bring Your Own Constellation — pi/4-QPSK and 16-QAM from an arbitrary complex stream.
• Waveform I/O — One Capture, Four File Types — one capture written to raw / CSV / BLUE / SigMF and read back.

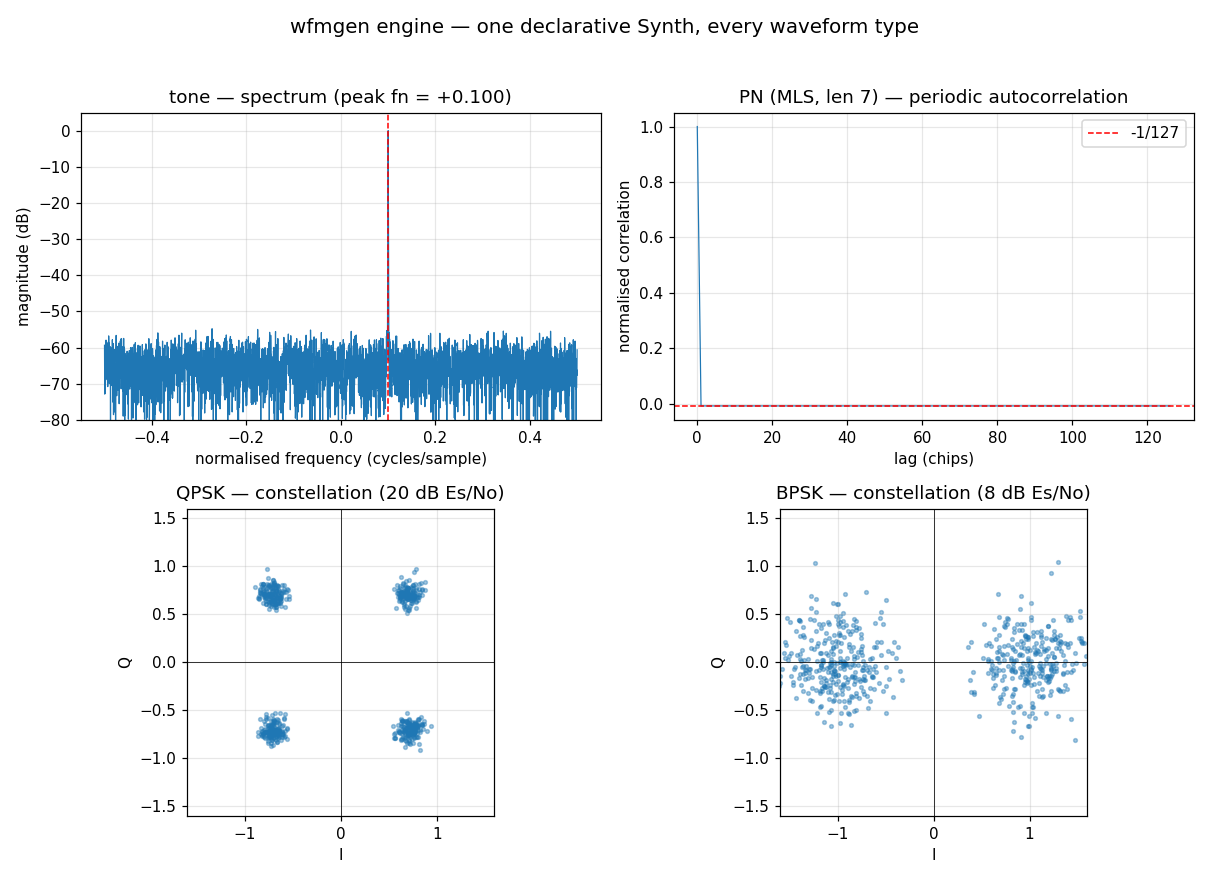

• wfmgen — One Engine, Every Waveform — tone / PN / QPSK / BPSK from one declarative Synth.

Channel impairment¶

What a channel does to a signal: a Doppler channel with clock Doppler, delay and noise.

• Doppler Channel — a Doppler Profile Driven by a Cosine — one cosine period as the Doppler: the carrier follows fc·d(t) to 1.4 Hz of 50 kHz, the code slip peaks at 2.5 chips (2.44 in theory) and returns to zero, and no straight line explains any of it.
• Doppler Channel — Clock Doppler as a Propagation Impairment — clock Doppler as an impairment: one ppm dilates the whole time base and shifts the carrier, so a code loop sees the rate error its carrier loop implies.

Rate conversion & resampling¶

Polyphase resampling, rate converters and halfband decimators.

• CIC Decimation Filter — wideband IQ → CIC → narrowband slice; 84 dB measured alias rejection (R=8, N=4).
• Farrow Interpolator — fractional-delay resampling.
• HalfbandDecimatorQ15 — Fixed-Point Halfband Decimator — fixed-point Q15 halfband 2:1 decimator for interleaved IQ int16.
• RateConverter — Automatic Cascade Selection — automatic CIC / halfband / polyphase cascade for any rate ratio.

Down-conversion (DDC)¶

Complex- and real-input digital down-converters, and their matched flavors.

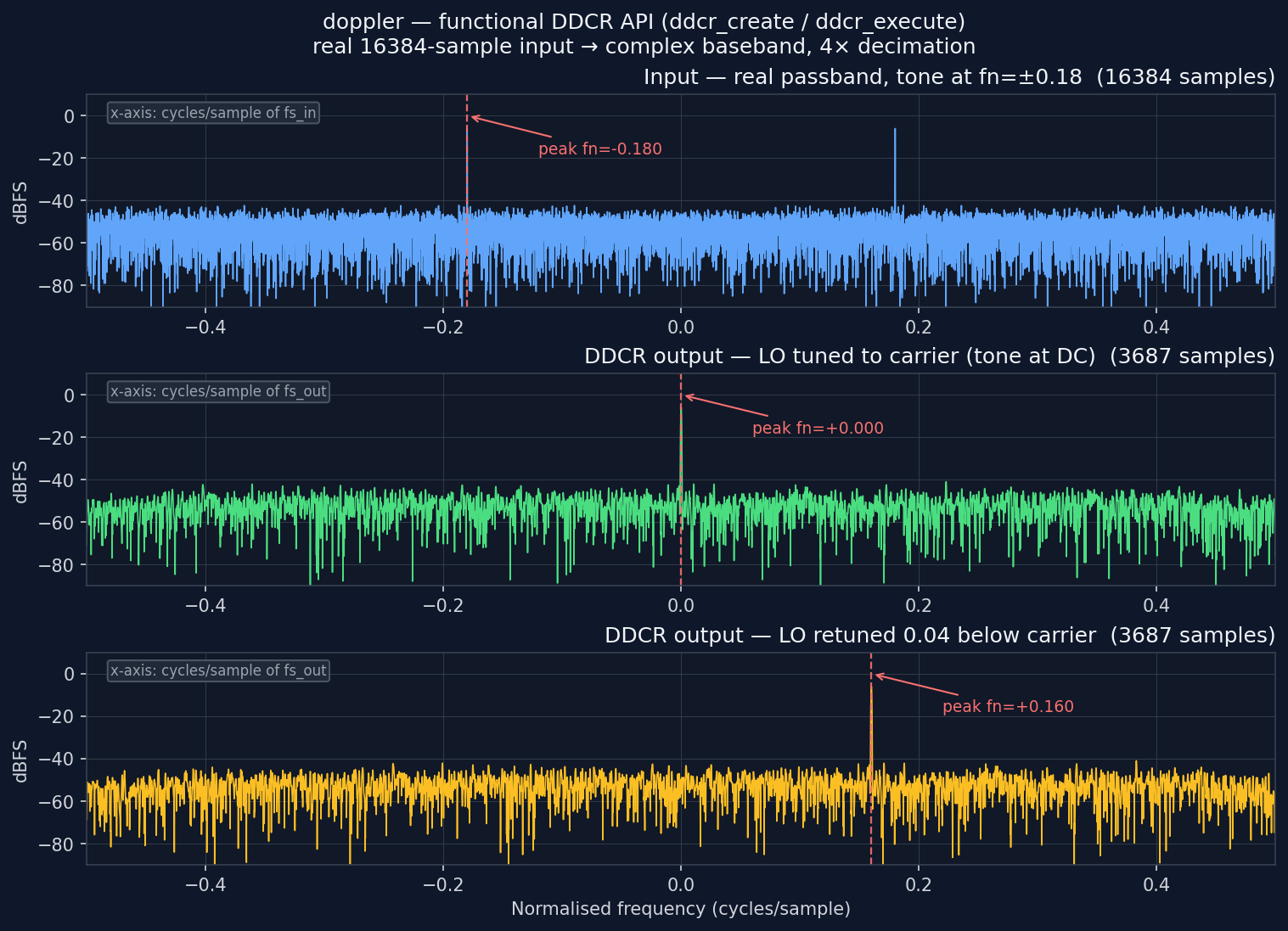

• Ddcr — Real Passband to Baseband — real passband in, complex baseband out, caller-owned buffer, thread-per-shard scaling.

Spectral analysis¶

FFTs, correlators, power spectra and spectrograms.

• 2-D Acquisition Grid — GPS/CDMA Doppler × code-phase search with Šidák-corrected CFAR.
• A Streaming Spectrogram — a chirp and a tone as one row per 64 samples, in power and in dB, on a DC-centred axis.

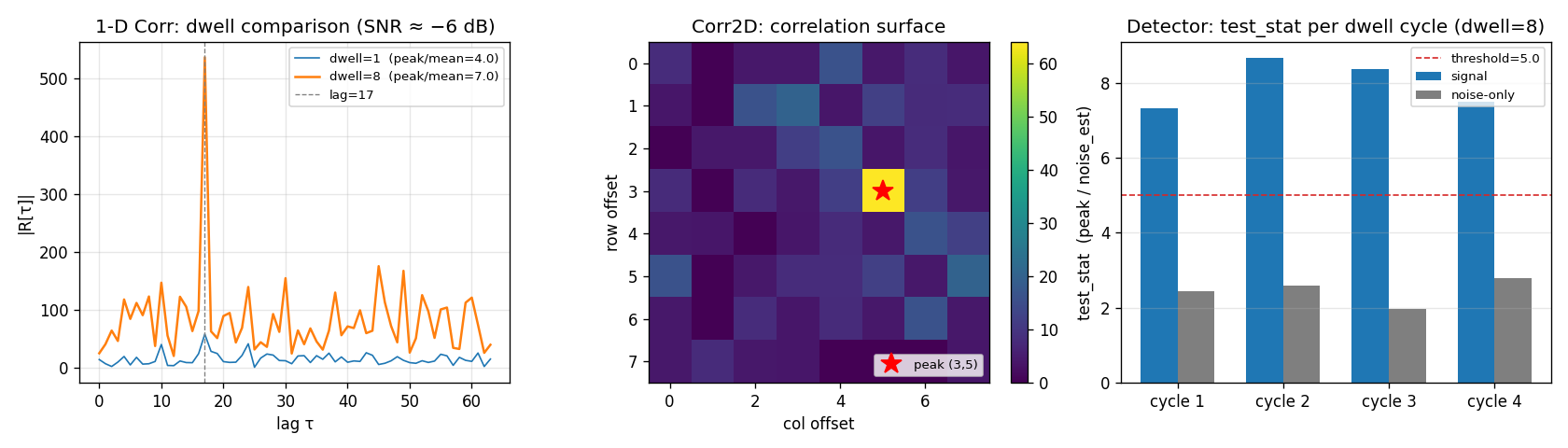

• Correlation and Detection — coherent integration, 2-D template matching, streaming CFAR.
• Delay-Doppler Search — a delay-Doppler map, a coarse carrier bank and the refine that recovers its straddle loss, plus a batch of hypotheses in one call.

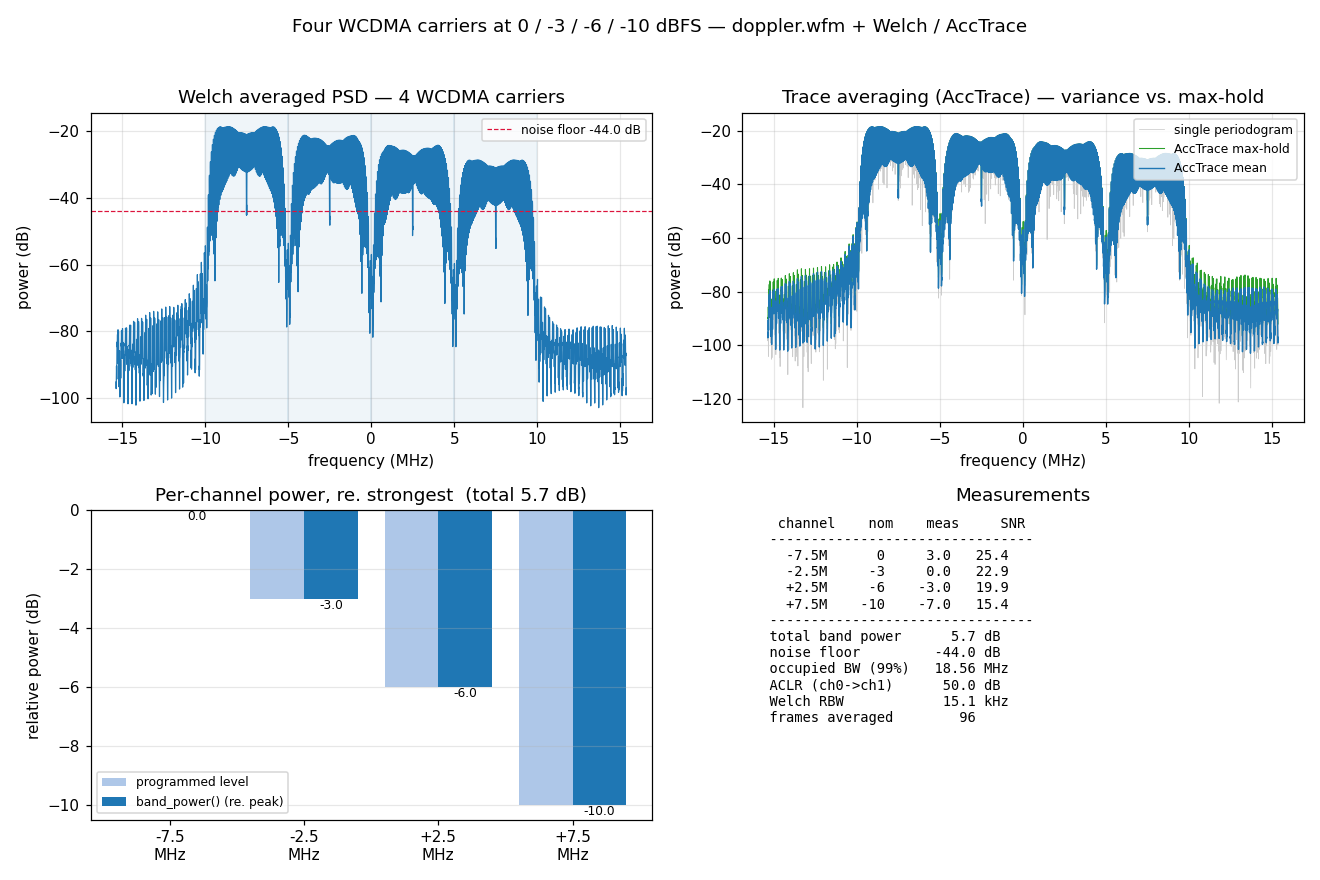

• Four WCDMA Carriers — PSD, band_power, AccTrace — four RRC channels measured with PSD and AccTrace.

Measurement suite¶

Tone, NPR and two-tone IMD metrics returned as named records.

• Measurement Suite — ADC characterisation — SNR / SINAD / THD / SFDR / ENOB from ToneMeasure.
• Measurement Suite — two-tone IMD/TOI & notched-noise NPR — two-tone IMD/IM3, TOI, and notched-noise NPR.

Acquisition¶

Finding a signal before anything tracks it: bursts, preambles and carriers.

• CarrierAcquisition: RRC Pulse Shaping — PSDMF residual-carrier estimation against an RRC-shaped BPSK stream, and why the psd_template override matters.

Tracking & synchronization¶

Loop filters, carrier and timing recovery, and the narrowband receivers built on them.

• Arbitrary-Rate Symbol Recovery — matched filtering and symbol timing in one dot product, at a non-integer samples-per-symbol.
• Carrier Loop Stress — Costas loop pull-in under noise.
• Code Loop Tracking — delay-locked loop code tracking.
• Costas Loop — Theory Validation — loop-filter design and steady-state behaviour.
• DLL Code Loop — Theory Validation — discriminator and loop-filter derivation.
• Full-Chain Lock-Up — Dll -> Costas -> SymbolSync cold-started with no code, carrier, or timing knowledge, watched over one shared Telemetry context.
• Lock Detection: Verify Counts + Hysteresis — level + time hysteresis vs. a naive comparator on a marginal signal.
• M-PSK Carrier Loop — Theory Validation — decision-directed carrier recovery.
• M-PSK Receiver — Performance Characterisation — EVM, SER, lock time, false alarm and level invariance over random geometries.
• M-PSK Receiver — Pull-in, Lock, and BER — integrated carrier + timing + bit recovery.
• M-PSK Receiver — Sizing the Carrier Loop, and Riding a Doppler Profile — sizing bn_carrier for a predictable acquisition, and what a step and two ramps actually cost.
• NDA Carrier Loop — Theory Validation — non-data-aided carrier recovery.
• Symbol Timing Recovery — timing-error-detector-driven resampling.
• Timing Loop — Theory Validation — the timing loop's transfer function.

Automatic gain control (AGC)¶

A log-domain feedback AGC.

• AGC Settling — a design chart — how long to wait, when 1/(4·loop_bw) is only a floor.
• AGC — Step Response — closed-loop power controller with decimated and per-sample loop updates.

Detection statistics¶

Pd, Pfa and threshold models, a lock detector and a sync-word finder.

• Detection Theory Curves — Pd vs SNR and dwell from closed-form Marcum Q.
• Monte Carlo vs Marcum Q Theory — 30,000-trial validation of the Marcum Q curves.

Spread spectrum (DSSS)¶

Despreading, polynomial-phase estimation and the DSSS receivers.

• A Message Over DSSS, Received and Deframed — a data source sent one chunk per burst, received by DsssBurstReceiver, and returned byte for byte by FrameDesc.deframe.
• AsyncDsssPool: emitters that come and go — three receivers, four emitters on one Gold code: each held by one receiver, a departure freeing its receiver, and the newcomer taking it, read from the pool's own status after every push.
• AsyncDsssPool: ten emitters through six receivers — ten emitters on one Gold code, each on its own Doppler ramp and within ±8 dB of the others, come and go through six receivers: each held by one receiver from soon after it arrives, a freed receiver taking the next, and a weak emitter waiting for the strong one that masks it.
• AsyncDsssReceiver: a signal's lifecycle — one packaged receiver through an emitter's life: searched, tracked through a fade, released when it departs, reset, and re-acquired on its return, read from its own state after every push
• AsyncDsssReceiver: the specification link — one packaged receiver on a link whose Doppler stretches the chip clock as well as the carrier, through both regimes of a pass: carrier-to-code aiding, a missed hand-off searched again, and the decode scored by BER, EVM and M2M4
• DSSS Acquisition — Pd / Pfa vs Es/N0 — detection characterisation curves.
• DsssBurstReceiver — the Composed Burst Chain — the end-to-end DSSS burst walkthrough: a train sent from one frame description on all three wfmgen faces, then BurstAcquisition -> refine -> BurstDemod behind one push(), the same answer at every block size
• DsssReceiver — the Composed Continuous DSSS Receiver — Acquisition -> Dll(segments) -> RateConverter -> MpskReceiver at real chip/symbol rates, collapsed into one DsssReceiver and one steps() call -- the despreader removes the code and an explicit resampler bridges it to a normal demodulator.
• Streaming Async Despreader — Dll(segments) despreading a Doppler-dilated code on an asynchronous data clock, unaided and with the carrier's rate aid.

M-PSK modulation¶

M-ary PSK symbol map and demap, hard, soft and differential.

• M-PSK constellation (Gray-coded map / demap) — M-PSK mapping and constellation rendering.

Channel coding¶

Convolutional, Reed-Solomon and interleaving codes.

• Name Your Own Code — and What Happens Past the Radius — a Reed-Solomon outer code and a convolutional inner code that are nobody's standard, run end to end; and what a bounded-distance decoder does past its radius, where a refusal is safe and a miscorrection is not

CCSDS literals¶

The values CCSDS 131.0-B picked for synchronization and coding.

• A CCSDS CADU, as a Frame Description — a frame as a list of fields and a list of stages, each carrying the span it covers: why a pipeline cannot express the one thing CCSDS's stages disagree about, and what an outer code reports on the receive side that a CRC cannot

Bit-error rate (BER)¶

A BER meter that aligns a recovered stream to a reference.

• Measuring an Error Rate, Defensibly — BerMeter on AWGN: detected alignment, inverse binomial sampling, and the exact confidence interval.

Telemetry¶

In-band probes that record loop internals.

• Capturing All Receiver Telemetry — every MpskReceiver probe captured and stored from one ring.
• Telemetry: Many Emitters, One Consumer — three emitters fanning into one ring, one consumer.

Sample-format conversion (cvt)¶

Converters between float IQ and fixed-point integers.

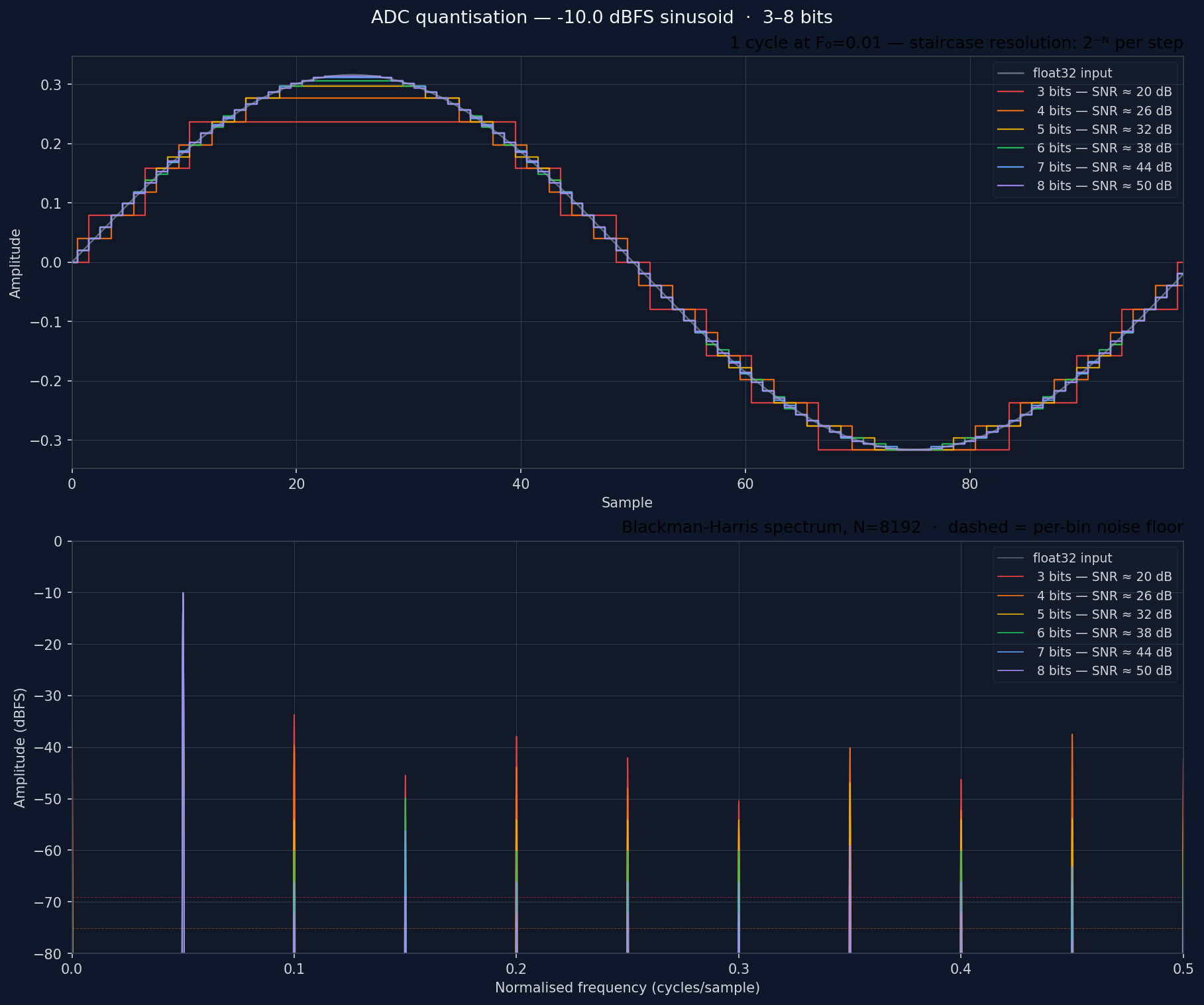

• ADC Quantisation — 3–8 Bits — staircase resolution and noise floor across 3–8 bits.

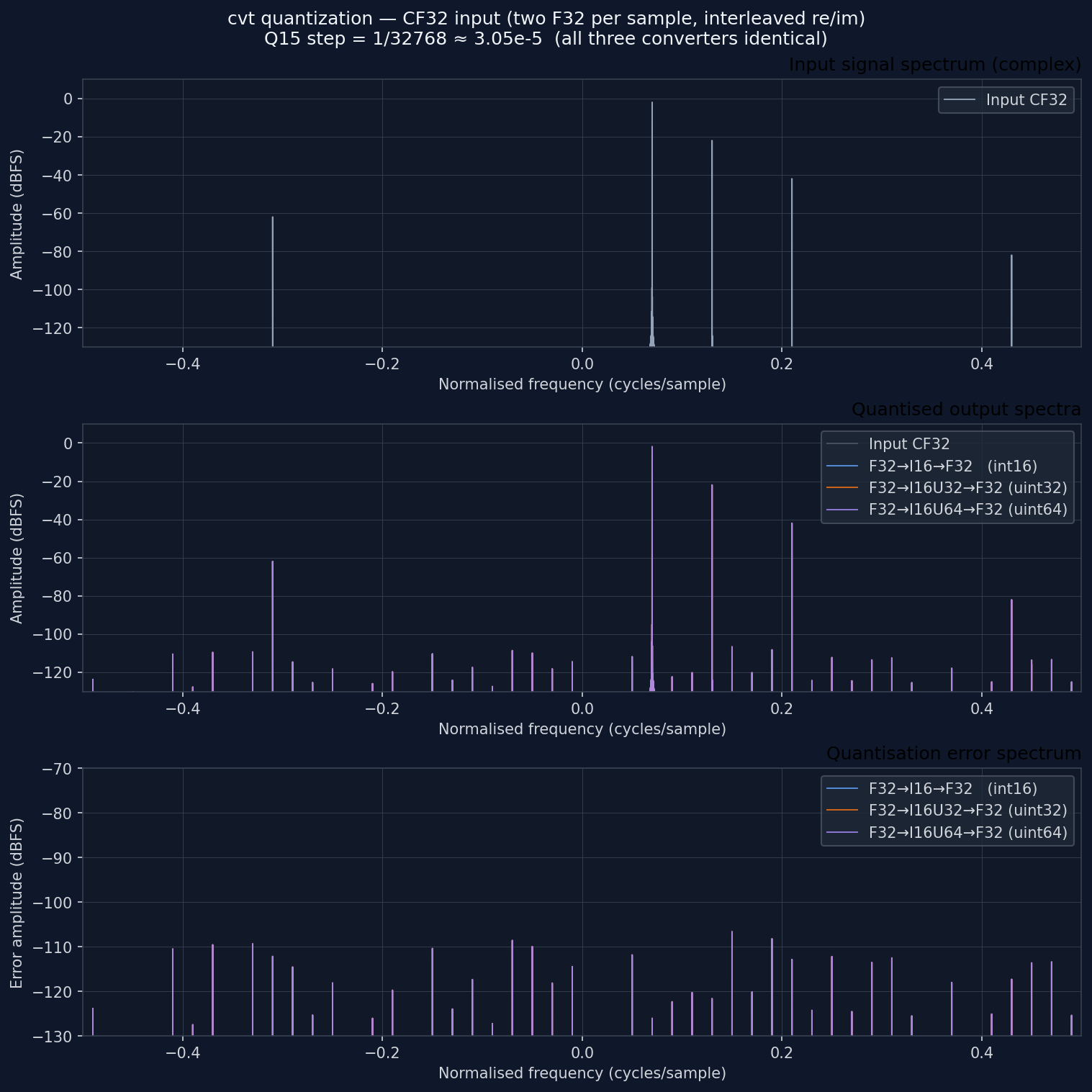

• cvt Quantization Noise — the three cvt formats overlaid at identical noise floor.
• Q15 vs UQ15 Quantization — bipolar vs offset-binary encodings of the same Q15 step.
